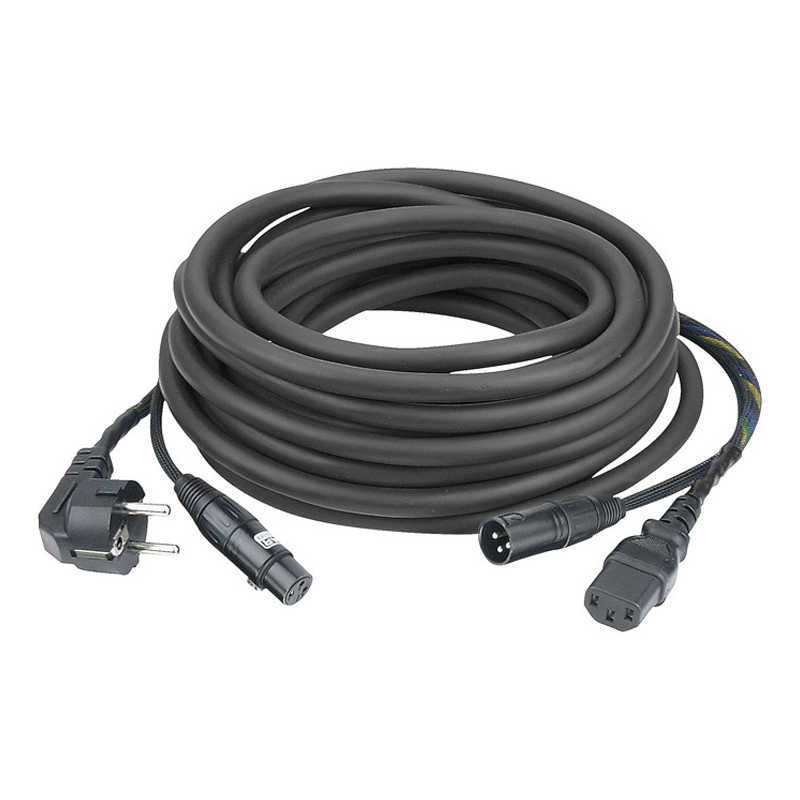

Dap-Audio Powersignalcable FP0815B

Cavo Audio Phono Rete

‎Cavo di alimentazione/segnale audio con connettore XLR maschio e femmina 3P, con schuko maschio e connettore IEC‎

Specifiche Tecniche

• Rated Current (A): 16 A
• Flashover Voltage: 30 V
• Impedance: 75 Ω
• Connector 1: Schuko Plug, XLR 3P
• Connector 2: IEC C13 female, XLR 3P
• Cable Length: 15 m
• Pins: 3
• Conductor Resistance: 80 Ω/km
• Conductor Capacitance: 60 pF/m
• Capacity Inner conduct. Shield/Inner conduct.: 78 pF/m
• Outer Cable Diameter: 11 mm
• Outer Isolation Type: PVC
• Weight: 2.6 kg
• Material: Copper
• Colour: Black
• 1st Shield: Twisted
• Shield Resistance: 30 Ω/km
• Filler Material: Paper
• Conductors: 6
• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
