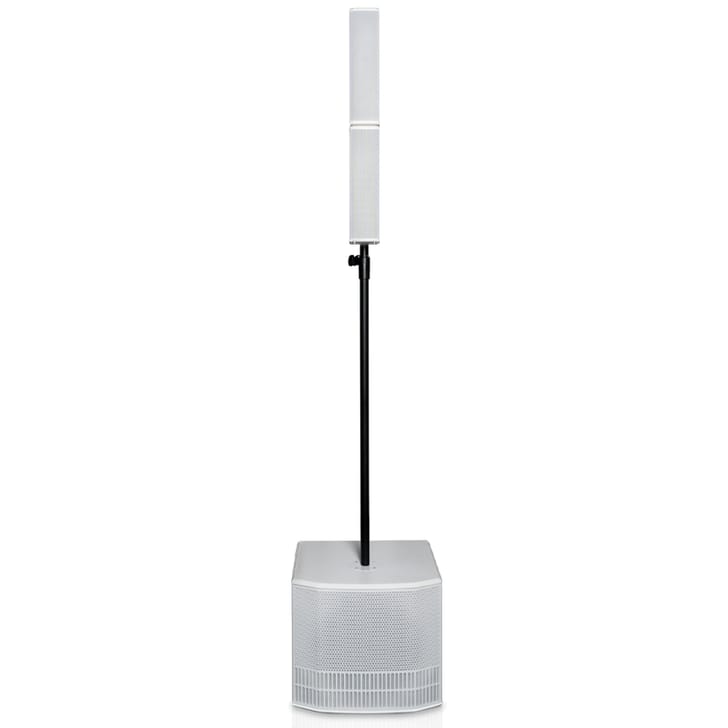

Db Technologies ES503 White

Sistema Stereo

ES503 è un sistema stereo composto da due top passivi e un subwoofer da 12”, che ospita un amplificatore con auto-range e un mixer a 3 canali con connessione Bluetooth®. Il DSP, controllato tramite uno schermo OLED, gestisce la dispersione del sistema e tutte le funzioni del mixer, rendendo l'ES503 un vero gioiello in termini di prestazioni audio e versatilità.

Specifiche Tecniche

• Speaker Type: 3-amped Stereo System with two full-range tops and one subwoofer
• Frequency Response [-10dB]: 37 - 15.000 Hz
• Max SPL: 121 dB
• MF - HF: 8x 3"
• Type MF - HF: Neodymium
• LF: 12"
• Directivity: 95x65°
• Amp Technology: Digipro® G3
• Amp Class: Class-D
• Power Amp Peak: 1000 W
• Controller: DSP 24 Bit/48 kHz
• System Presets: Factory presets + User defined
• Limiter: Dual Active, Peak, RMS, Thermal
• Crossover Frequency LF-HF: 206 Hz
• Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input
• Line Channels: 2x Combo (XLR/Jack) balanced/unbalanced inputs
• Media Channel: 1x Bluetooth® built-in receiver
• Mix Output: 1x XLR balanced output
• Housing (Subwoofer): 15mm Black Painted Plywood
• Housing (Tops): Polypropylene PP
• Handles: 2x lateral side (Subwoofer)
• Width (Top): 95 mm
• Height (Top): 360 mm
• Depth (Top): 137 mm
• Width (Subwoofer): 465 mm
• Height (Subwoofer): 400 mm
• Depth (Subwoofer): 430 mm
• Weight (Top): 1.9 Kg
• Weight (Subwoofer): 16.4 Kg
