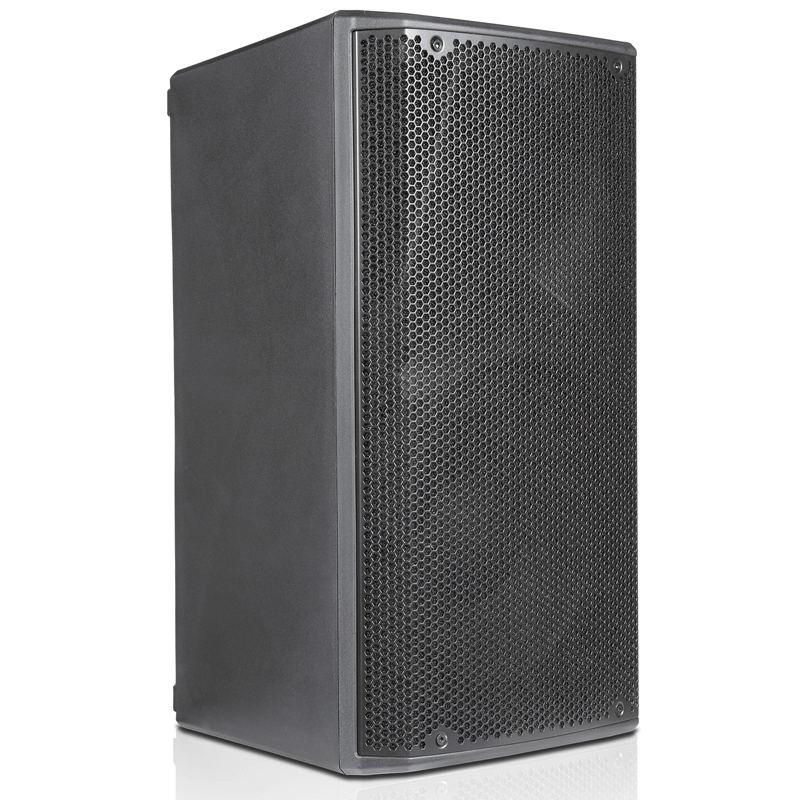

Db Technologies Opera 12

Diffusore Attivo 12"

Grande potenza e un rinnovato design acustico restituiscono una performance sonora allo stesso tempo vigorosa e accurata, perfetta sia in applicazioni playback che live.

Specifiche Tecniche

• Speaker Type: 2-Way Active Speaker
• Frequency Response [-10dB]: 52 - 20.000 Hz
• Frequency Response [- 3dB]: 67 - 19.600 Hz
• Max SPL: 129 dB
• HF: 1" Exit 1.4"V.C.
• Type HF: Compression driver
• Directivity H: 100° (85° up /120° down)
• Directivity V: 85° (+25°/-60°)
• Horn: Asymmetrical Horn
• LF: 12 " 2" V.C
• Amp Technology: Amp SMPS Power Supply Dual Range
• Amp Class: Class D
• Power RMS: 600 W
• Power Peak: 1200 W
• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/48 KHz
• System Presets: Rotary Encoder (8 presets)
• Cross-Over Frequency: 2000 Hz
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters
• Signal Input: 1xCombo (XLR/Jack 6.3 mm) MIC/Line - 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
• Signal Output: 1x XLR Male (CH1 Link/Mix OUT) - Selectable
• Box: Polyporpylene
• Griglia: Full Grille
• Handles: 1 on left Side, 1 on Top
• Rigging Points: 2xM10 on Top + 1xM10 on Back
• Pole Mount: D36 mm
• Angles Up: Monitor use 45 °
• Width: 350 mm
• Height: 642 mm
• Depth: 349 mm
• Peso: 14.3 kg
