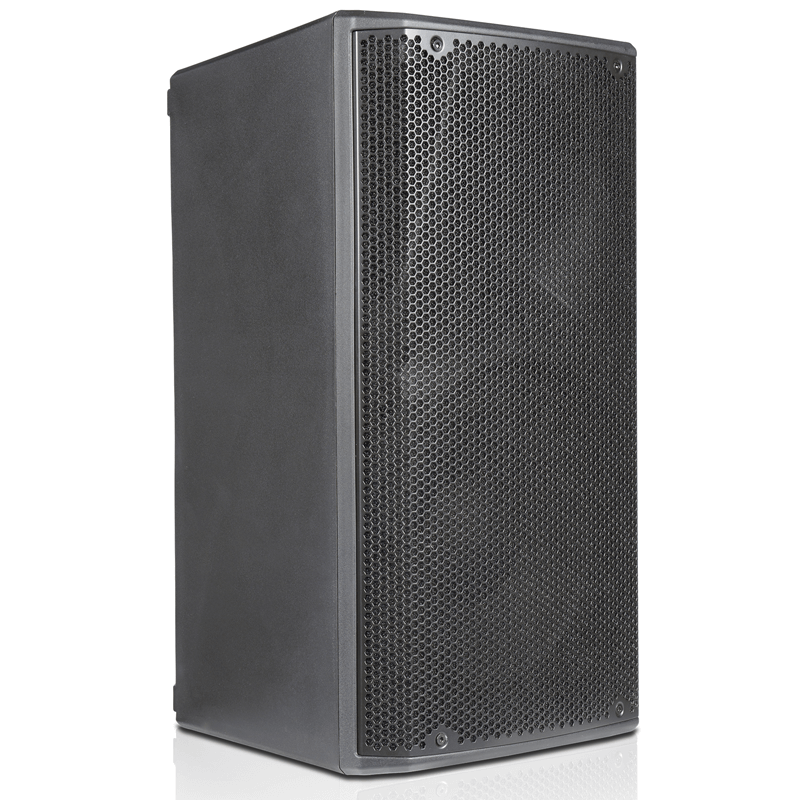

Db Technologies Opera 15

Diffusore Attivo 15"

Grande potenza e un rinnovato design acustico restituiscono una performance sonora allo stesso tempo vigorosa e accurata, perfetta sia in applicazioni playback che live.

Specifiche Tecniche

• Altoparlanti: 2-Way Active Speaker
• Risposta in frequenza [-10dB]: 52 - 20.000 Hz
• Risposta in frequenza  [- 3dB]: 56 - 19.000 Hz
• Max SPL: 130 dB
• HF: 1" Exit 1.4"V.C.
• Type HF: Compression driver
• Directivity H: 100° (85° up /120° down)
• Directivity V: 85° (+25°/-60°)
• Tromba: Asymmetrical Horn
• LF: 15 " 2" V.C
• Amp Technology: Amp SMPS Power Supply Dual Range
• Amp Class: Class D
• potenza RMS: 600 W
• Potenza di picco: 1200 W
• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/48 KHz
• System Presets: Rotary Encoder (8 presets)
• Frequenza Cross-Over: 1800 Hz
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters
• Signal Input: 1xCombo (XLR/Jack 6.3 mm) MIC/Line - 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
• Signal Output: 1x XLR Male (CH1 Link/Mix OUT) - Selectable
• Box: Polyporpylene
• Griglia: Full Grille
• Handles: 1 on left Side, 1 on Top
• Rigging Points: 2xM10 on Top + 1xM10 on Back
• Pole Mount: D36 mm
• Angles Up: Monitor use 45 °
• Dimensioni: W 420 mm, Height 722 mm, Depth 419 mm
• Peso: 18.3 kg
