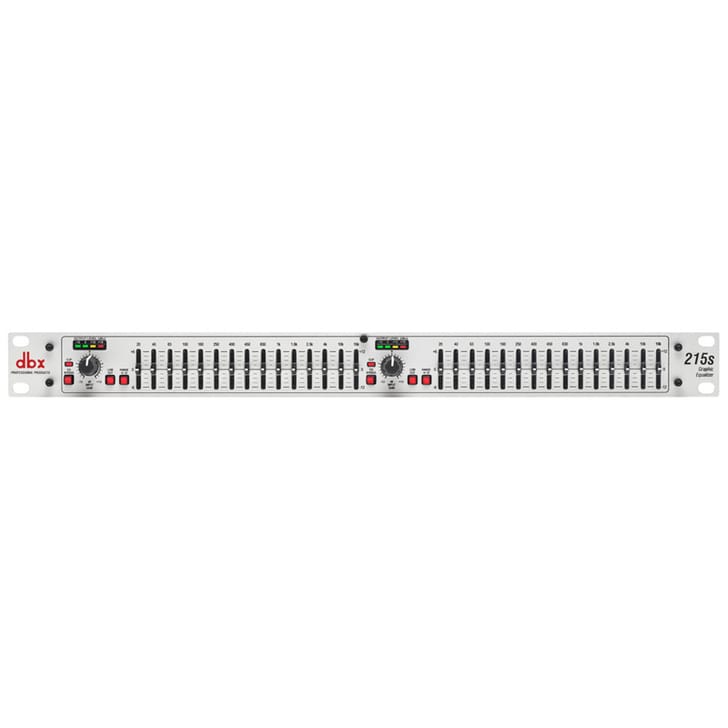

DBX 215S

Equalizzatore Grafico 15 Bande

‎Quando i professionisti hanno bisogno di un EQ, si rivolgono a dbx. Con una comprovata esperienza che abbraccia quattro decenni, dbx® EQs è lo standard del settore per tour, studi e installazioni audio. Con l'eredità dbx di venerati EQ professionali, il 215s soddisfa le esigenze degli ambienti di rinforzo del suono più esigenti, offrendo al contempo la semplicità di controlli semplici.‎

Specifiche Tecniche

• Input Connectors: 1/4" TRS, female XLR (pin 2 hot)
• Input Type: Electronically balanced/unbalanced, RF filtered
• Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm
• Max Input: >+21dBu balanced or unbalanced
• CMRR: >40dB, typically >55dB at 1kHz
• Output Connectors: 1/4" TRS, male XLR (pin 2 hot)
• Output Type: Impedance-balanced/unbalanced, RF filtered
• Output Impedance: Balanced 100 ohm, unbalanced 50 ohm
• Max Output:>+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
• Bandwidth: 20Hz to 20kHz, +0.5/-1dB
• Frequency Response: <10Hz to >50kHz, +0.5/-3dB
• Dynamic Range: Typically >112dB
• Signal to Noise Ratio: Typically >95dB
• THD+Noise: <0.003%
• Interchannel Crosstalk: <-90db, 20Hz to 20kHz
• Bypass Switch: Bypasses the graphic equalizer section in the signal path
• Low cut Switch: Activates the 50Hz 12dB/octave Bessel high-pass filter
• Range Switch: Selects either +/- 6dB or +/- 12dB slider boost/cut range
• Operating Voltage: 100VAC-240VAC 50/60Hz
• Power Consumption: 15W
• Power Connector: IEC receptacle
• Unit Weight: 4.8 lbs.(2.2 kg)
• Shipping Weight: 6.2 lbs.(2.8kg)
• Dimensions: 4.4 cm H x 15.24 cm D x 48.26 cm W
