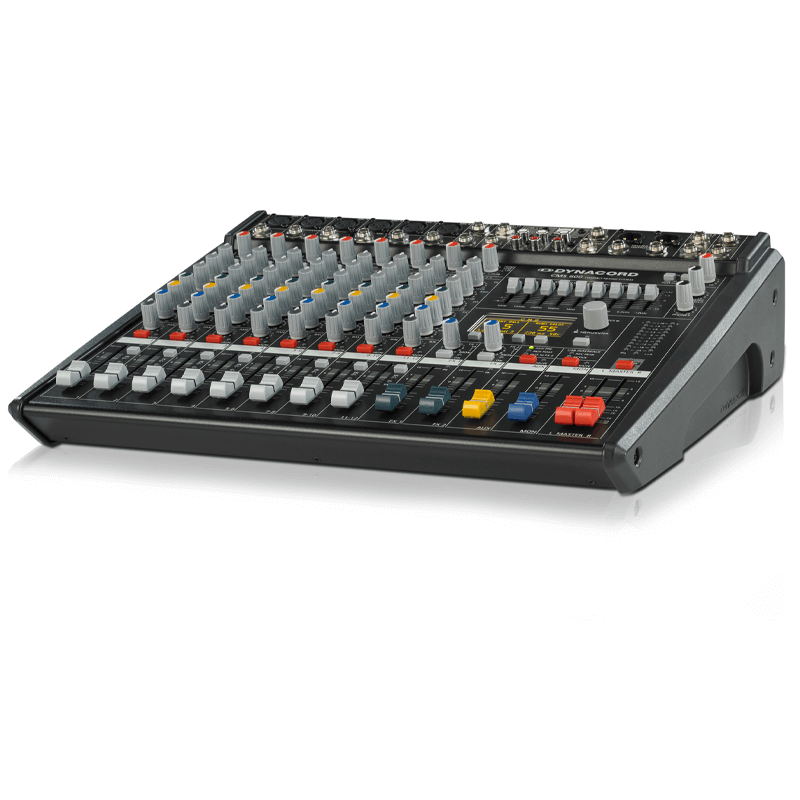

Dynacord CMS 600-3

Mixer Audio 8 Canali

‎Grazie al suo impressionante set di funzionalità e versatilità, il mixer CMS 600-3 è la scelta ideale per tutte le applicazioni professionali in cui sono richiesti pochi canali, ma un'elevata qualità audio. ‎Essendo leggero e compatto, non pone problemi di trasporto. Il mixer CMS 600-3 è anche un'ottima soluzione in molte applicazioni di installazione fissa. Prestazioni senza compromessi. ‎Il mixer audio professionale tra i mixer. Unico. CMS 600-3.

Specifiche Tecniche

• Channels: 4 +2 + 2
• MIC/Line-Mono: 4
• MIC/Line-Mono / USB-Stereo (Super Channel): 2
• Line L-R / CD-IN-Stereo: 2
• Auxiliarys (AUX, MON): Pre/Post switchable, Pre
• MIC GAIN (LINE -20 dB): +10 to +60 dB
• TRIM LINE/CD (Stereo): -10 to +20 dB
• THD: at 1 kHz, MBW = 80 kHz
• MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
• Frequency Response: -3 dB, ref. 1 kHz
• Any input to any Mixer output: 15 Hz to 70 kHz
• Crosstalk: 1 kHz
• Channel to Channel: < -80 dB
• Mute & Standby switch attenuation: > 100 dB
• Fader & FX/AUX/MON-Send attenuation: > 85 dB
• CMRR, MIC input, 1 kHz: > 80 dB
• Input Sensitivity: MIC -74 dBu (155 µV) - LINE (Mono) -54 dBu (1.55 mV) - LINE (Stereo) -34 dBu (15.5 mV) - CD (Stereo) -34 dBu (15.5 mV)
• Maximum Level, mixing desk: MIC inputs +12 dBu - Mono Line inputs +31 dBu - Stereo Line inputs +30 dBu - All other inputs +22 dBu - All other outputs +22 dBu
• Input Impedances: MIC 2 ㏀ - CD In 10 ㏀ - All other inputs > 15 ㏀
• Output Impedances: Phones 47 Ω - All other outputs 75 Ω (unbalanced), 150 Ω (balanced) - Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu - Noise, Channel inputs to Master A L/R outputs, A-weighted - Master fader down -100 dBu - Master fader 0 dB, Channel fader down -92 dBu - Master fader 0 dB, Channel fader 0 dB, Channel gain unity -82 dBu
• Equalization: LO Shelving ±15 dB / 60 Hz - MID Peaking ±12 dB / 2.4 kHz - HI Shelving ±15 dB / 12 kHz - Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
• Filter: LO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
• Filter: LO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
• Display: 128 x 64 pixels, OLED
• Effects : Type Dual stereo 24/48-bit multi effects processors - Effects presets 100 Factory + 20 User, Tap-Delay - Remote control Footswitch, MIDI
• Digital Audio Interface: Channels 4 In / 4 Out - AD/DA Conversion 24-bit - Sampling Rate 44.1 / 48 / 88.2 / 96 kHz - PC Interface USB2.0, Female Type B
• Supported OS: See documentation
• MIDI Interface: 5-pin DIN connector, In / Out
• Mixer Outputs (Relay controlled): AUX, MON, MASTER A L/R
• Switching Mode Power Supply: (µC controlled) Mains Over/Undervoltage
• Phantom Power: Switchable 48 V DC
• Power Requirements: (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
• Power Consumption: at 1/8 maximum output power, 4 Ω 35 W
• Safety Class: I
• Ambient Temperature Limits: +5 °C to +40 °C (40 °F to 105 °F)
• Dimensions: W 416.9 x H 108.6 x D 347.8 - Rack-mount (7.5 HE): W 483.0 x D 99.1 x H 332.6
• Net Weight: 5.8 kg
• Shipping Weight: 7.8 kg
• Warranty: 36 months
• Optional Accessories: RMK-600-3 (Rack Mount Kit for CMS 600-3) F01U214881 (DC-RMK-CMS-3) - FS 11 (Footswitch with LED) F01U100598 (DC-FS11) - Carrying Bag for CMS 600-3 F01U259015 (DC-BAG-600CMS)
