Eikon EKJM

Sistema Microfonico Wireless

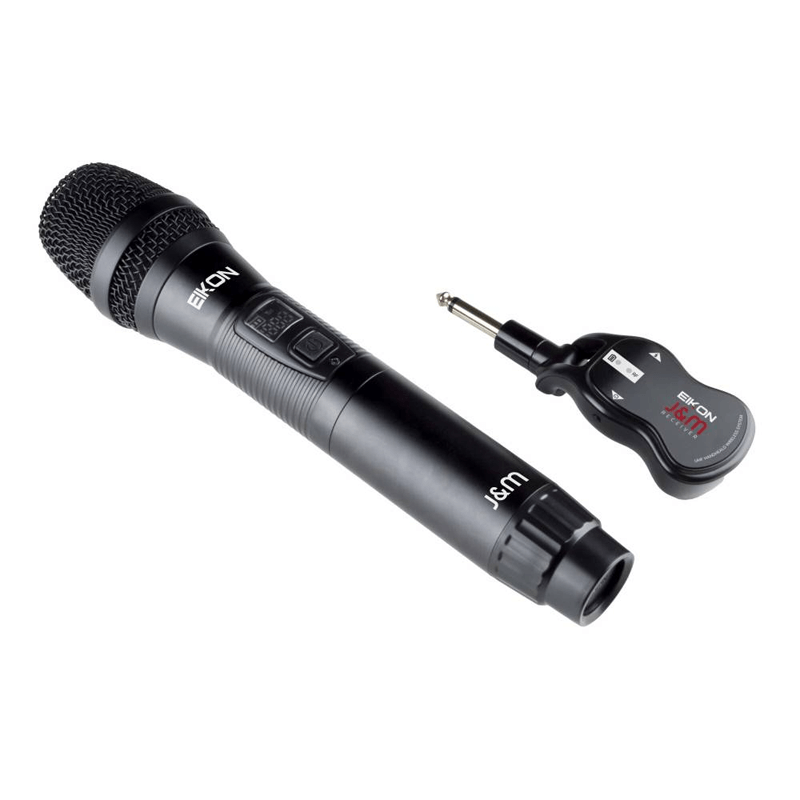

EKJ&M è un sistema microfonico wireless UHF che fornisce una trasmissione del segnale affidabile e di alta qualità. EKJ&M è dotato di 3 unità: trasmettitore portatile EKJ&M, ricevitore compatto "formato connettore" EKJ&M e cavo di ricarica da USB a USB-C.

Specifiche Tecniche

EKJ&M – UHF PLL 16 Channel Transmitter

• RF Channels: 16 frequency presets
• RF Frequency Band: UHF: 863-865 MHz
• RF Frequency Stability: ±0,002%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM Stereo
• RF Output Power: 10mW
• Sub-harmonic: < 40 dB
• Operating current: 130 mA
• Operating Time: 5 to 8 hrs (depending on volume level)
• Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery
• Charging mode: USB charging 5V – type C connector
• Charging time: 5 hours
• Weight: 0.30 Kg

EKJ&M –UHF PLL 16 Channels Receiver

• RF Channels: 16 frequency presets
• RF Frequency Band: UHF: 863-865 MHz
• RF Frequency Stability: ±0,005%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM Stereo
• RF Receiving Sensitivity: < -98 dBm
• RF Receiving range: 15 to 30 meters depending on used band conditions
• Audio dynamic range: 106 dBm
• THD Distortion: < 0.5%
• S/N Ratio: > 102 dBA
• Audio output connector: 6.3 mm Mono Jack
• Output Power Max (continuous): 400 mW
• Operating current: 80 mA
• Operating Time: 5 hours
• Operating Power Supply: 3.7 V / 500 mA - built-in Lithium battery
• Charging mode: USB charging 5V – type C connector
• Charging time: 3 hours
• Weight: 0.05 Kg
