Eikon WM700DH

Radiomicrofoni Levalier

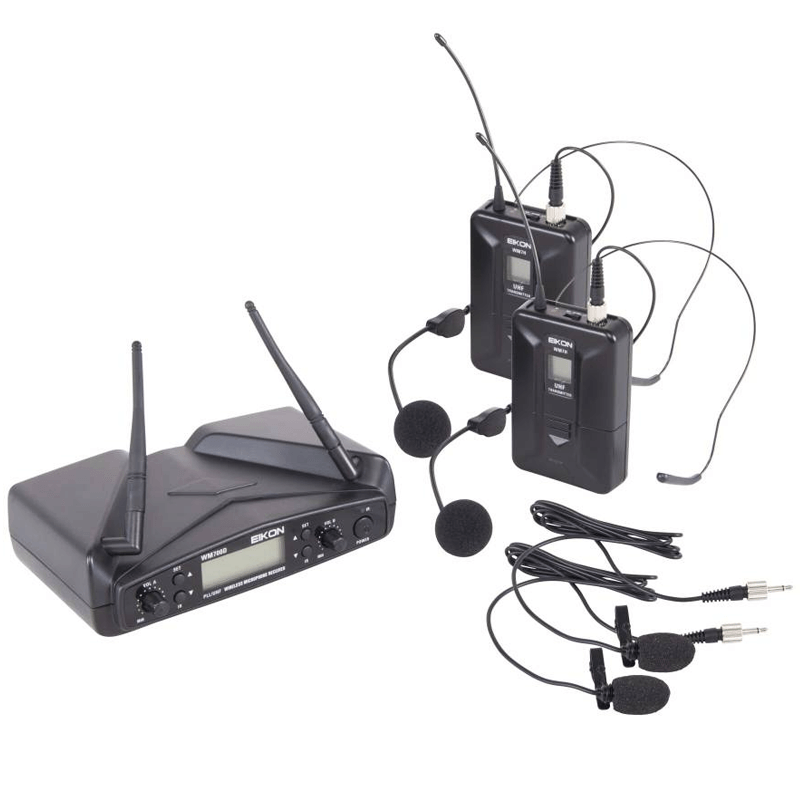

Radiomicrofono a mano doppio canale UHF PLL. Tono pilota digitale 32 Khz e alimentazione adapter USB. Gamma di frequenza 823/832 o 512/562 Mhz (WM700MA). Portata 30 metri. Fino a 4 frequenze simultanee per ogni banda. Custodia in ABS. 2 trasmettitori bodypack Headset/lavalier.

Specifiche Tecniche

Receiver

• Frequency Band: UHF 823-832 MHz o 512-562 Mhz (WM700DHA)
• RF Sensibility: -105 dBm
• RF Image/Spurious Rej.: >70 dB
• RF Interference Reject.: >70 dB
• RF Frequency Stability: ±0.002%
• THD Distortion: <1%
• S/N Ratio: >105 dB
• Frequency Response: 50 Hz – 15 KHz (±3 dB)
• Power Supply: 5 V DC 500 mA
• Dimensions: 175 x 135 x 45

Belt-Pack Transmitter

• RF Frequency Band UHF 823-832 MHz o 512-562 Mhz (WM700DHA)
• RF Power <10 dBm
• Modulation method FM (F3E)
• RF Max deviation ±40 KHz
• RF Frequency Stability ±0.002%
• Spurious Emission under limits EN 300422
• Frequency Response 50 Hz – 15 KHz (±3 dB)
• Included Microphones 2
• HCM25 Headset Mic. Cond. Cardiod
• LCH100 Lavalier Mic. Cond. Cardiod
• Power Supply 2x1.5V AA alkaline bat
• Dimensions: 100 x 65 x 30
