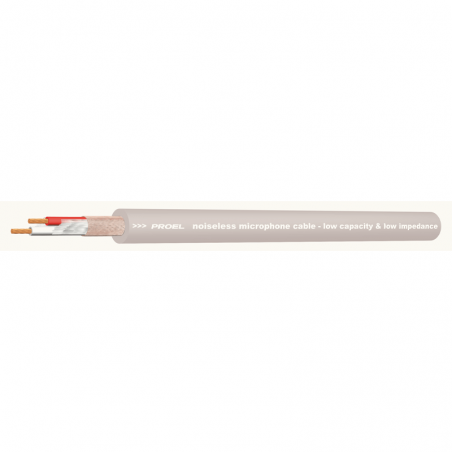

Proel HPC210WH

Bobina Cavo Bilanciato Bianco

Cavo bilanciato professionale per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0,22 mm2). Colore bianco.

Specifiche Tecniche

• Application fields: Recording studios / Microphone connections
• Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)
• Insulation: PE (Compact polyethylene) Ø 1.60 mm - RED/WHITE
• Shield: Spiral copper 16x5x0.10 mm > 90%
• Jacket: Flexible PVC 60 shore Ø 6.50 mm
• Color: White
• Electrical resistance: 93 Ohm/Km (conductor) @ 20°C - 20 Ohm/Km (shield) @ 20°C
• Electrical capacitance: 46 pF/m (conductor/conductor) @ 1 KHz - 90 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension: < 50 V AC - < 75 V DC
• Weight: 46 Kg
• Minumum bending radius: 20 x cable section radius
• Lunghezza: 100 m carton reel
