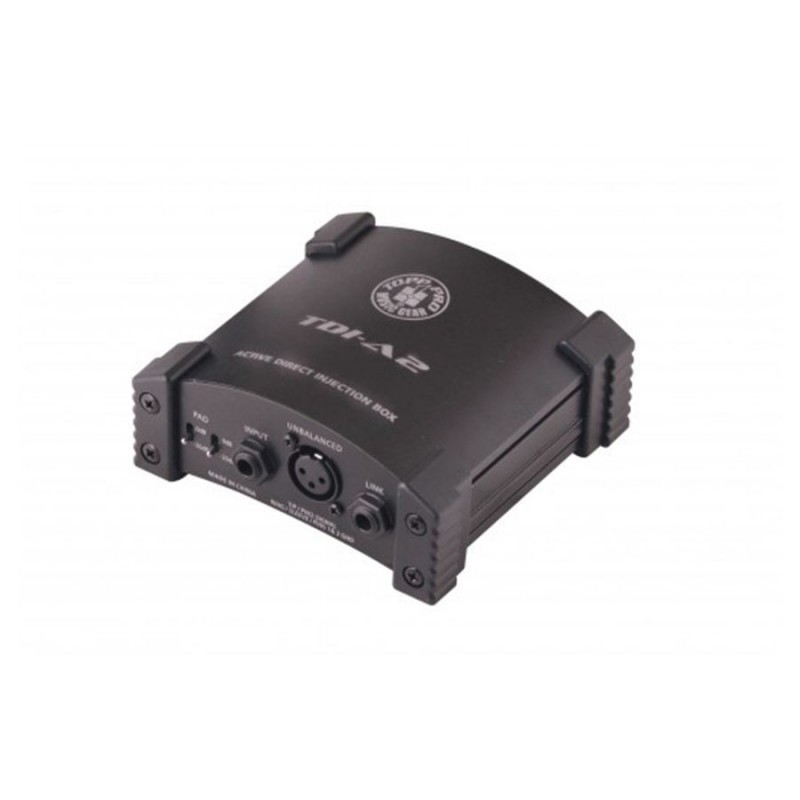

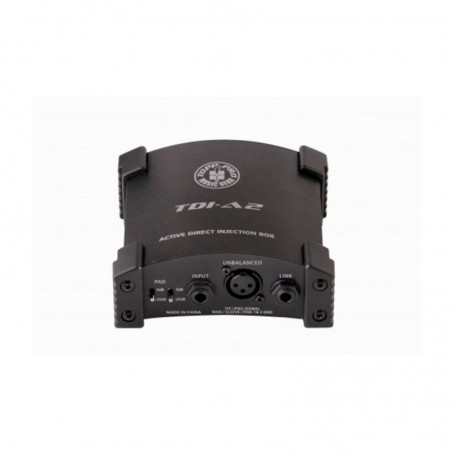

Topp Pro TDIA2

D.I. Box attiva a 1 canale

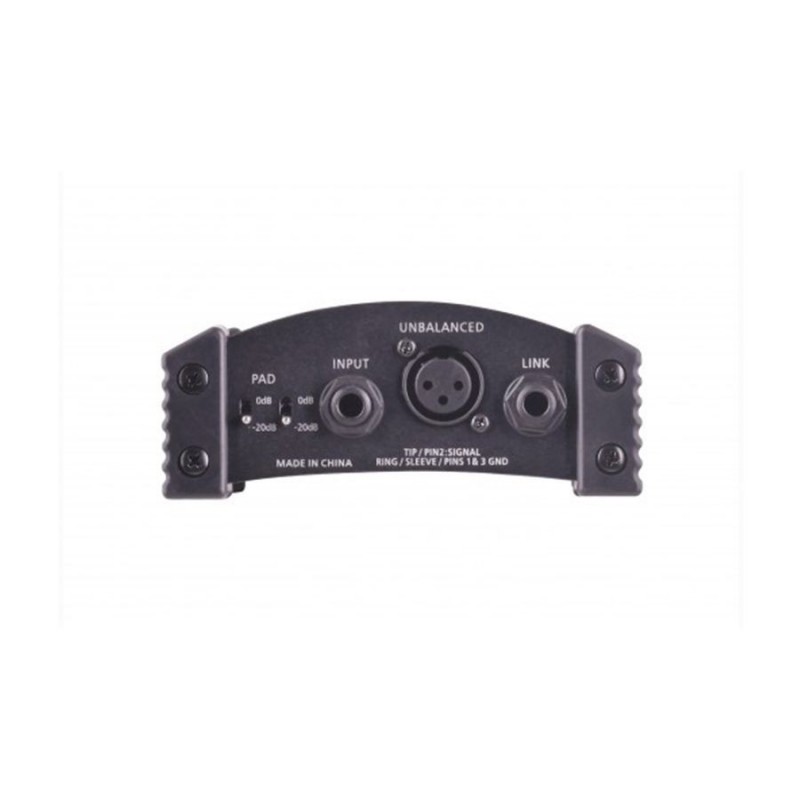

Jack 1/4" and XLR unbalanced input
Jack 1/4" unbalanced link output
XLR balanced output Ground lift
20 dB attenuator
48V phantom power or 9V battery

SPECIFICHE TECNICHE

Inputs 1/4" mono jack connector (Top hot, sleeve ground) or 3-pin XLR connector (pin 2 hot, pins 1-3 ground, unbalanced parallel link output 1/4" jack connector for feeding to other equipment or via buffer amplifier
Attenuator At 0dB / At 20dB
Impedance 1M Ohm / 47K Ohm
Max. Input Level +13dB / +33dB
Outputs 3-pin connector, transformer balanced output, will drive lines from 600ohm upwards. Maximum output level clip greater than +6dBu with battery or Phantom supply.
Frequency Response 10Hz to 30KHz, ±1dB
Noise -108dBu “unweighted”
THD Less than 0.02% a 1KHz, 0dBu Output
“Phantom Power” power requeriments +20V DC to +48V DC
Current Drain “Phantom power” less than 8mA, Battery less than 2mA

Dimensions 130 x 127 x 45mm
Weight 0.6Kg
