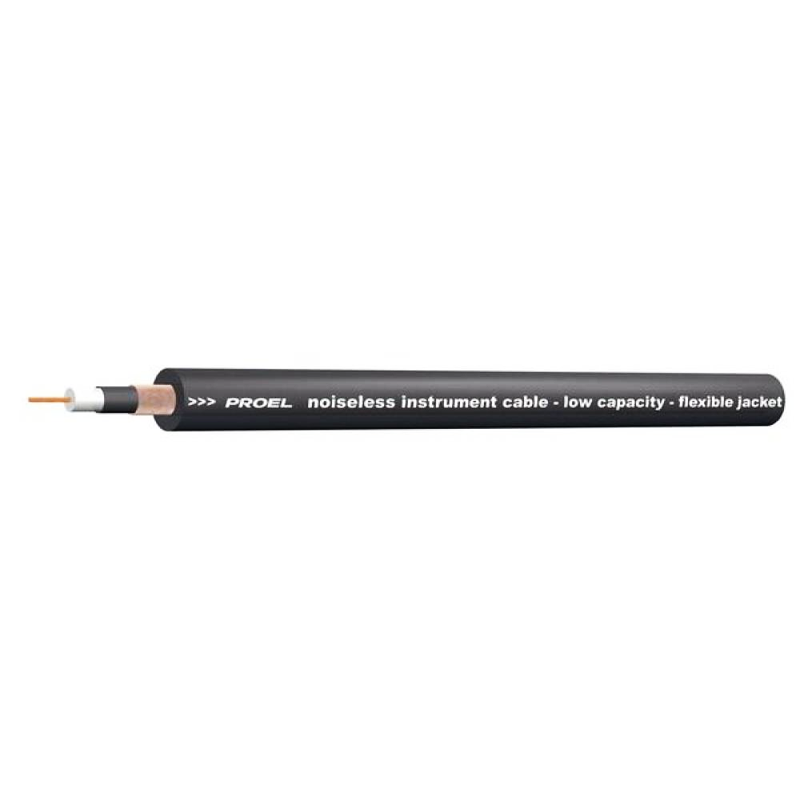

Proel HPC110BK

Cavo Audio Per Strumenti A Metro

Cavo coassiale schermato in rame O.F.C. (Oxygen Free Copper - Sezione 1 x 0,25 mm2), concepito per le connessioni di strumenti. Guaina esterna robusta e flessibile, doppia schermatura con materiale termoplastico conduttivo e con spirale di rame rosso. Isolamento in PE.

Specifiche Tecniche

• Application fields: Musical instrument connection / Multieff ect/mixer connection
• Conductors: Bare copper - 23 AWG = 30 x 0.10 mm (0.25 mm2)
• Insulation: PE Ø 1.8 mm
• Shield: (cable) Spiral Flexible copper 16x3x0.10 95%
• Conductor: High-conductive graphite jacket Ø 2.40 mm
• Cable: Flexible PVC 60 shore Ø 6.40 mm
• Color: Black
• Electrical resistance: 74 Ohm/Km (conductor) @ 20°C
• Electrical capacitance: 120 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension: < 50 V AC, < 75 V DC
• Weight: 44 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging: 100 m carton reel
