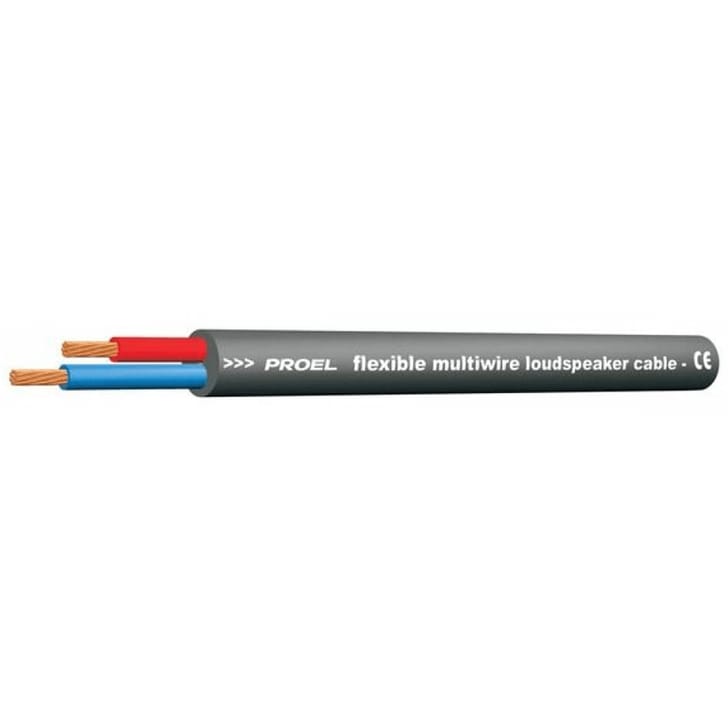

Proel HPC610BK

Cavo A Metro

Cavo ultra-flessibile a 2 conduttori twistati per diffusori acustici passivi, sezione 2 X 1,5 mm2.

Specifiche Tecniche

• Application fields: Passive speaker connections / sound reinforcement / studio installation / live
• Conductors: Bare copper 16 AWG = 30x0,25 mm
• Lay up: two conductors twisted in short concentric layers
• Insulation: flexible PVC 2,70 mm
• Jacket: Ultra - Flexible PVC – 60 Shore
• Overall diameter: 7,00 mm
• Cable section: 1.5 mm2/AWG16
• Electrical Resistance: @ 20°C: 12 Ohm/Km (conductor)
• Electrical Capacitance: @ 1 KHz: 115 pF/mt (conductor/conductor)
• Operating temperature: -20°C / +70°C
• Minumum bending radius: 10 x overall diameter
• Weight: 136 Kg/Km
• Color: Black
• Packaging: 100 m standard carton reel
• Packaging: 300 m wooden reel (HPC610BKR300)
