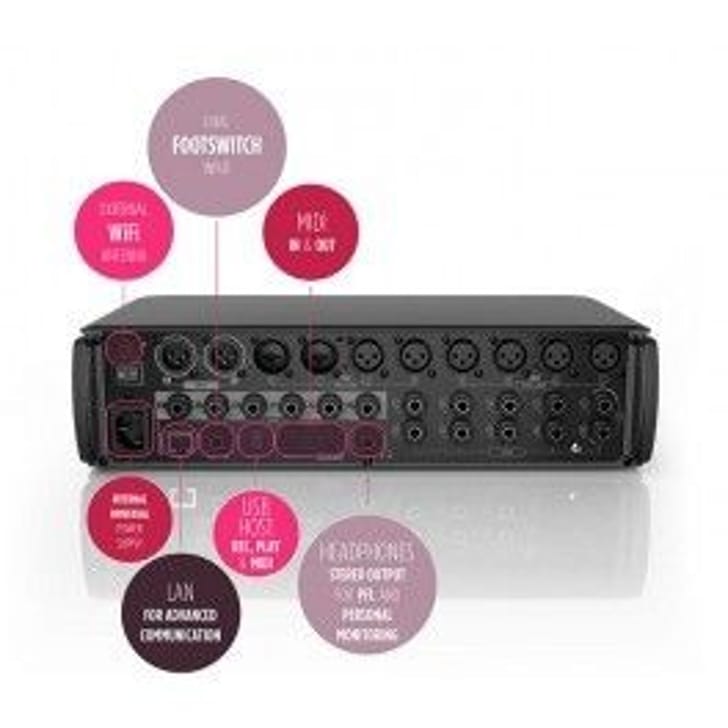

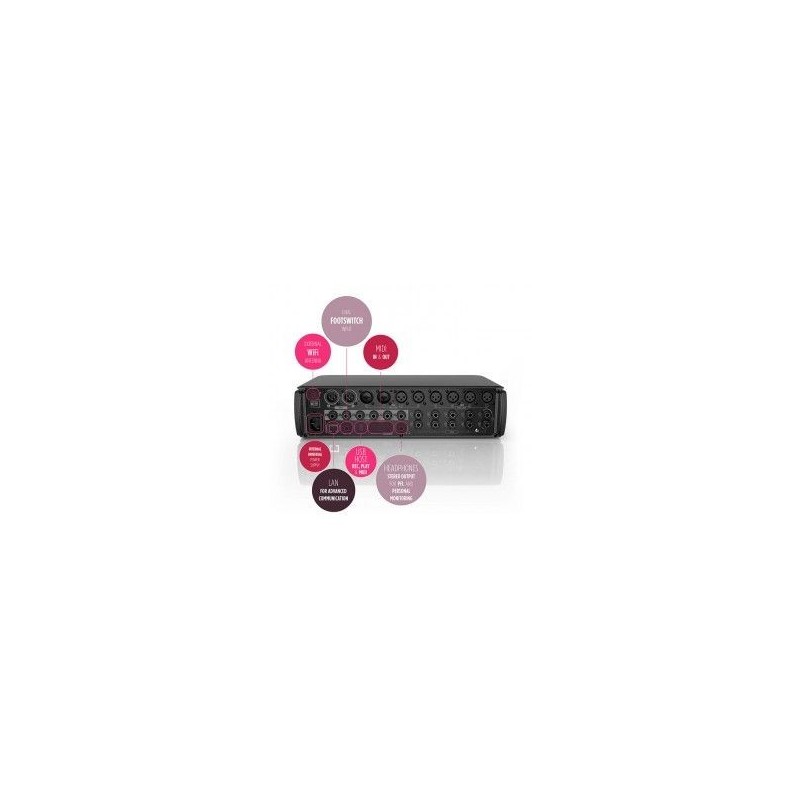

Rcf M18

Il mixer M 18 di Rcf rappresenta una soluzione perfetta per i musicisti e non solo. Flessibilità e massimo comfort sono i punti di forza indiscutibili, grazie all'alimentazione interna, e all'access point wi-fi integrato con l'ausilio delle antenne. L'unica cosa di cui devono occuparsi i musicisti, sono i loro strumenti!

Caratteristiche

8 High Performance discrete Mic Preamp Input
10 Line input including 2 HiZ switchable input
1 Stereo Main Out
6 balanced Aux output
1 Stereo Headphones Out
1 dual footswitch connector
MIDI IN and OUT Ports
Selection of three type of PEQ , Gate, Compressor on every input channel
Standard PEQ on every Aux Out
Three internal FX: Reverb, Delay, Modulation
Up to 16 insertable Plug-ins selected between plenty of option
Valve warmer, Xciter, Maximizer and Stereo Graphic EQ on Main Mix

Specifiche Tecniche

ELECTRONIC SPECIFICATIONS
Frequency Response 20Hz - 20kHz
THD+N, 20dB gain in, 0dBu out 0.003% A-Weighted

PROCESSING
Processing Channels 20
Signal Processing 32 Bit Floating Point
A/D-D/A conversion 24 Bits @ 48kHz
Dynamic Range 114dB

WIRELESS SPECIFICATIONS
Internal Access Point yes
Dual Band yes
IEEE802.11 b/g standard 2.4 / 5.0 GHz
Antennas 2 int. + 1 ext.

INPUTS
Mic 8
Remote Controlled Storable Gain yes
Gain range 0 to 60dB
Input Noise Level -128 dBu A-Weighted
Mic Inputs Impedance 1 k?
Low Cut adjustable 10 to 500Hz
Phantom Power +48V yes
Line 10
Gain Selection -10 dB / +4 dB
Line Input Impedance 10k?
HI-Z Line Inputs 2
HI-Z Line Inputs Impedance 1M?
A/D Dynamic range 114 dB

OUTPUTS
Main MIX 2 (L/R)
AUX Send 6
FX Send 3
Phones 1 Stereo

OUTPUT SPECIFICATIONS
Main Out Impedance 50 ?
Main Out Level 21 dBu
Aux Out Impedance 50 ?
Aux Out Level 21 dBu
Phones Out impedance 40 ?
Phones Out Level 35 dBm
D/A Dynamic Range 114 db

GATES
Description Gates present on all input channels

COMPRESSORS
Description Compressors present on all input channels
EQ
BANDS 2 Parametric / 2 Shelving
Description Standard, Vintage, Smooth EQs on all input channels. Standard EQ on AUX Out.

AUXILIARY SENDS
AUX 2
AUX 4
FX 3

INTERNAL EFFECTS
Send Effects 3
MultiFX insert effects 16

MASTERING PROCESSORS
Description Valve Warmer, Xciter, Maximizer, 31 band Graphic EQ present on MAIN MIX

USB AUDIO
Type A
Play trk 2
Rec trk 2
Supported Sample Rate 48kHz
Supported Play Formats MP3, WAV, AIFF
Compressed File format play up to 320Kbps
Supported Rec Format WAV

OTHER FEATURES
Footswitch Dual
MIDI IN yes
MIDI OUT yes
LAN port yes

ELECTRICAL SPECS.
Power supply Internal
Voltage requirements from 100V to 240 V
Power consumption 40 W max

CABINET
Cabinet Material ABS
Colour black

PHYSICAL SPECIFICATION
Height 88mm / 3.465in
Width 340mm / 13.386in
Depth 180mm / 7.087in
Net Weight 2,5kg / 5.511lbs
