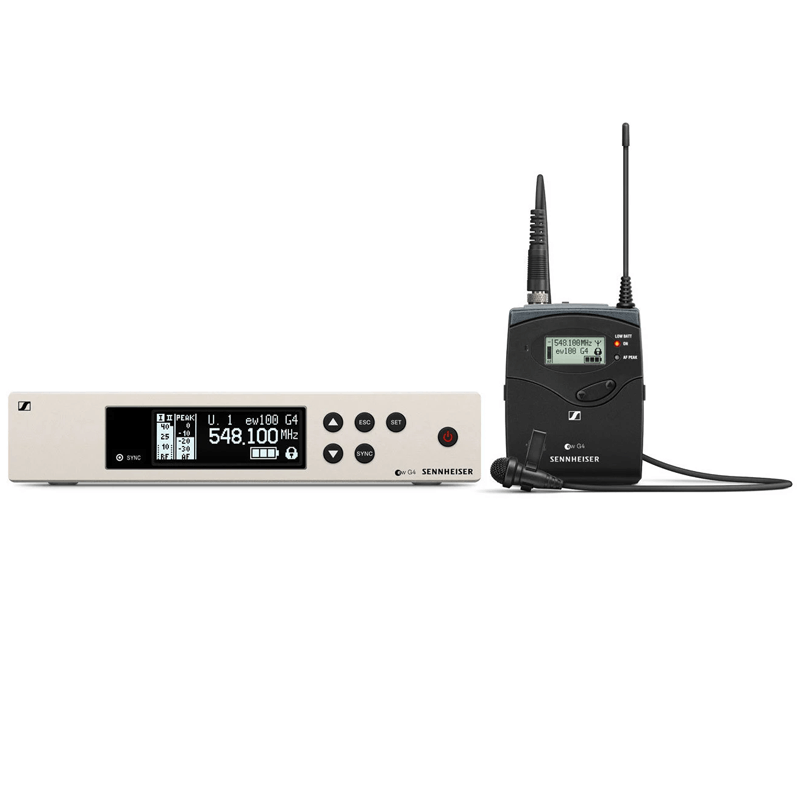

Sennheiser EW 100 G4-ME4-B

Sistema Microfonico Wireless Lavalier

‎Sistemi wireless versatili per coloro che cantano, parlano o suonano strumenti con larghezza di banda di sintonizzazione fino a 42 MHz in una gamma UHF stabile e configurazione rapida e simultanea di un massimo di 12 sistemi collegati. La scelta perfetta per moderatori e presentatori: robusto trasmettitore bodypack e discreto microfono clip-on ME 2-II (omnidirezionale) o ME 4 (cardioide) con elevata intelligibilità vocale per un facile funzionamento a mani libere su qualsiasi palco.‎

Specifiche Tecniche

• Frequency range: B: 626 - 668 MHz
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu - XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: ≥ 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Adjacent channel rejection: Typically ≥ 65 dB
• Intermodulation attenuation: Typically ≥ 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch: low: 5 dBµV - middle: 15 dBµV - high: 25 dBμV
• Equalizer: Preset 1: Flat - Preset 2: Low Cut (-3 dB at 180 Hz) - Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) - Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: ≥ 70 dB
• Dimensions: Approx. 190 x 212 x 43 mm
• Weight: Approx. 980 g
