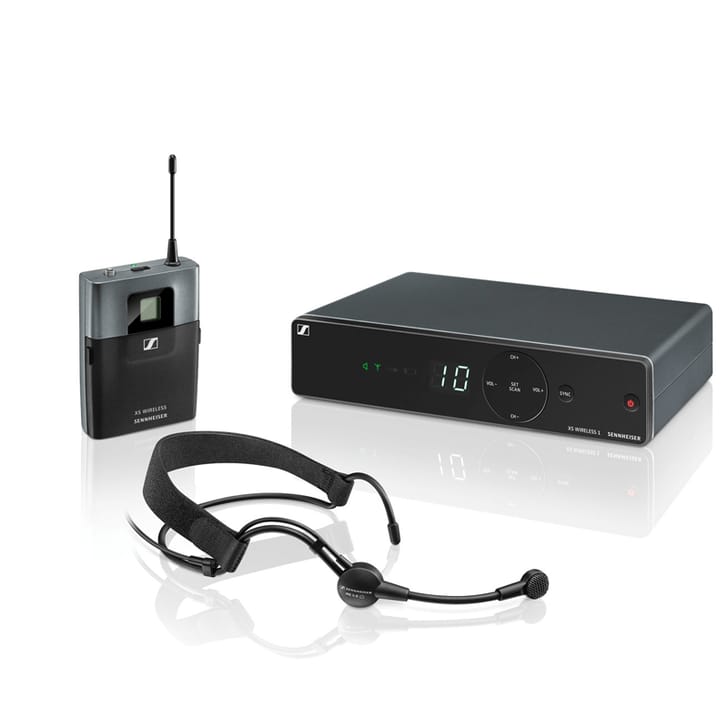

Sennheiser XSW 1-ME3 B-Band

Sistema Bodypack Radiomicrofono Ad Archetto

‎Prestazioni a mani libere. Scegli XS WIRLESS 1 e affidati a una solida trasmissione wireless con un massimo di 10 canali compatibili in una banda UHF stabile. XS WIRELESS 1 HEADMIC SET è un sistema wireless all-in-one facile da usare per cantanti e presentatori, eccellente per un suono dal vivo che coinvolge balli e canti allo stesso tempo. Il set include un ricevitore fisso intuitivo per una configurazione rapida e una gestione senza problemi, oltre a un trasmettitore bodypack compatto e un microfono auricolare leggero.‎

Specifiche Tecniche

Receivers

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: 12 V DC nom. / 300 mA
• AF frequency response: 50 to 16,000 Hz (–3 dB)

Transmitter

• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: Approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Microphone: Condenser
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: Cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: Wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range: B: 614-638 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 150 dB
• Squelch: Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: Operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
