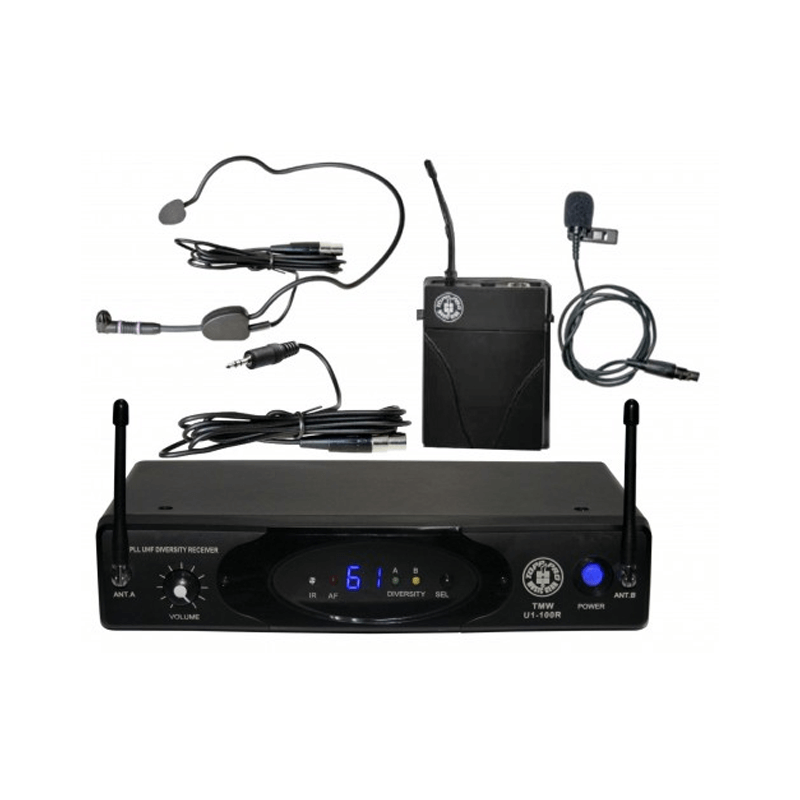

Topp Pro TP TMW-U1-100HLG

Radiomicrofono Professionale PLL UHF Bodypack

Specifiche Tecniche

• Channel: Single Channel, up to 99 frequency presets far each frequency bands
• Receiver Type: PLL UHF SYNTHESIZED
• Frequency Band: UHF
• Frequency Response: 50Hz - 15Khz (±3d8)
• Frequency stability: ±0.005%
• Modulation Mode: FM (F3E)
• T.H.D.: <1%
• Dynamic: >100dB
• Max Unbalanced Output: 10d8u
• Max Balanced Output: Max Balanced Output OdBu
• SIN Ratio: > 100dB
• RF Sensitivity: -100dBm/30mA
• Power Supply: DC 15V / 30mA
• Dimensions: 220 (W) x 45 (H) x 125 (L) mm
• Weight: 0.56kg (Approx.)
• Model: U1-100T (Transmitter)
• Tx Type: Beltpack
• Carrier Frequency Band: UHF
• Oscillation Mode: PLL UHF SYNTHESIZED
• Modulaion Mode: FM (F3E)
• Frequency stability: ±0.005%
• RF Radiation (FCC): 10mW
• Spurious Emissions: 45dBm
• T.H.D.: <1%
• Frequency Response: 50Hz - 15Khz (±3dB)
• Current Drain: <150mA
• Battery: "AA" x 2
• Operation Temperature: -10°C to 50°C
• Tone Frequency: 35KHz
• Dynamic: >100dB
• Mic / lnstrument Input: 10dBu
• Microphone Capsule: Condenser Dynamic
• 4 Band Choice: 1. Ground / 2. Power Supply / 3. IElectric lnstrument / 4. Dynamic or Condenser Mic
• Dimensions: 65 x 85 x25mm
• Weight: 0.082kg
