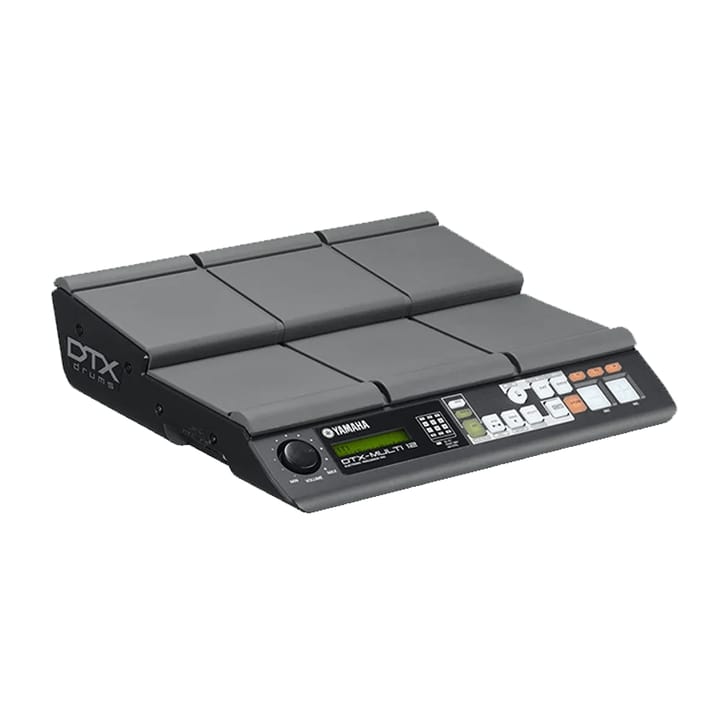

Yamaha DTX-Multi12

Pad Elettronico

MULTI-Level, MULTI-Play e MULTI-Purpose.

Specifiche Tecniche

• Built-in pads: 12
• External inputs: 5 (three-zone x 1; monaural x 4)
• Maximum Polyphony: 64 notes
• Voices: Drum and percussion: 1,061Keyboard: 216
• Effects: Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer
• Drum kits Preset: 50User-defined: 200
• Wave memory: 100 MB (16-bit linear conversion)
• Note Resolution: Quarter note / 480
• Preset patterns: 128 phrases (including 3 demo patterns)User-defined patterns: 50 phrases
• Sequence formats: ProprietarySMF Format 0 (for loading only)
• Sequence capacity: 152,000 notes
• Recording method: Real-time overdubbing
• Readable quantity: 500
• Bit depth: 16 bit
• Wave memory: 64 MB
• Maximum size: Mono sample: 2 MBStereo sample: 4 MB
• Sample formats: Proprietary, WAV, and AIFF
• Display: Backlit LCD with 2 rows of 16 characters
• Connectors: PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch)PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger)HI-HAT CONTROL jack (standard stereo-phone plug)FOOT SW jack (standard stereo-phone plug)OUTPUT L/MONO and R jacks (standard phone plugs)PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN.
• Consumo: 9W (DTXM12 and PA-5D adaptor)
• Package Contents: Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5)
• Pad functions:  Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages
• Tempo: 30 to 300 BPM. Tap tempo functionality
• Beats: 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16
• Note timing: Accent notes, quarter notes, eight notes, sixteenth notes, triplets
• Dimensions: Width 345 mm, Height 96 mm, Depth 319 mm
• Peso: 3.3 kg
