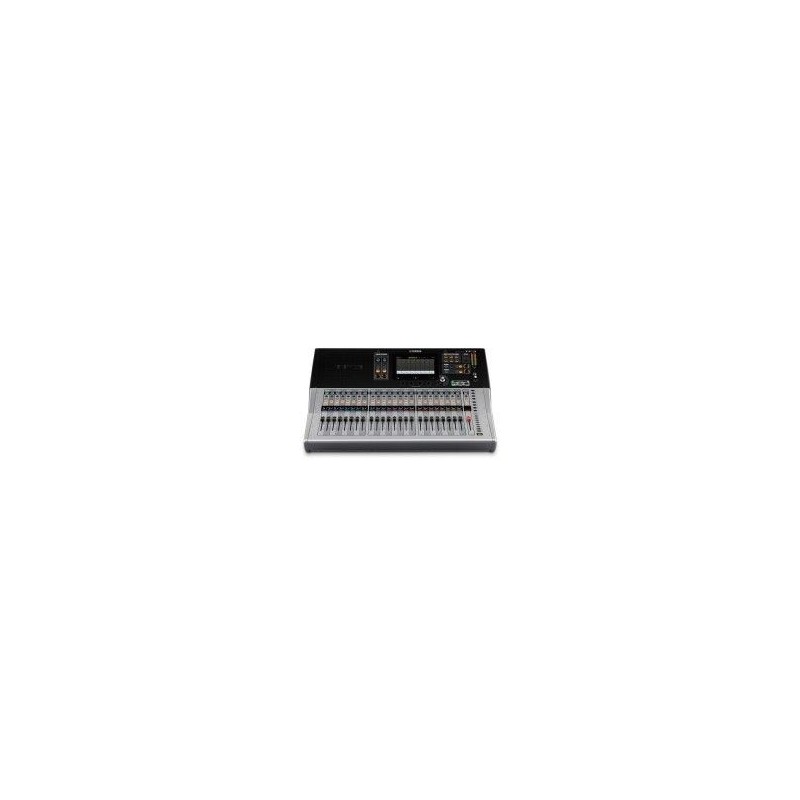

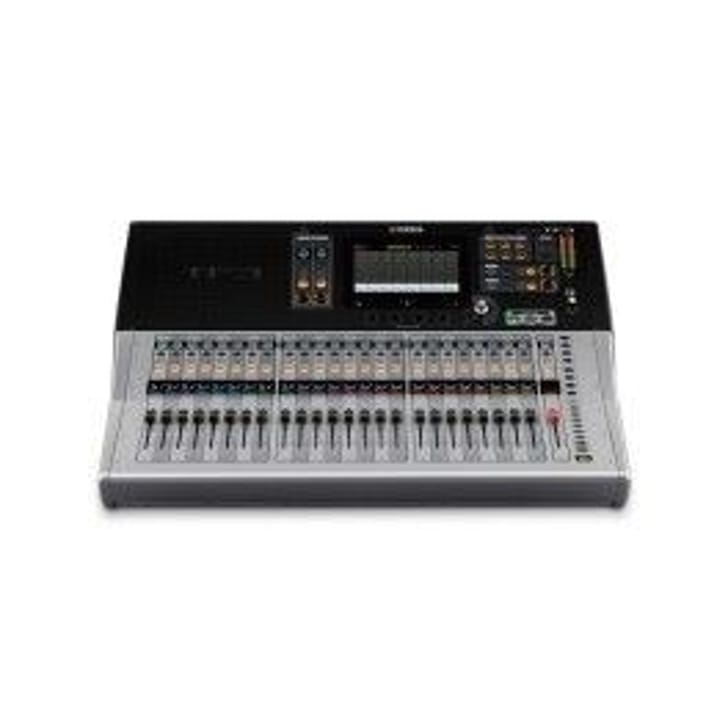

Yamaha TF3

2.440,00 €

Tasse incluse

Codice prodotto 127121

Non disponibile

local_shipping Spedizione Gratuita

Finanziamento findomestic

Simula la rata con Findomestic

Messaggio pubblicitario con finalità promozionale...
Offerta di credito valida dal 01/01/2024 al 31/12/2024, con decorrenza media della prima rata a 90 giorni. Salvo approvazione di Findomestic Banca S.p.A.. IEBCC visibile nel percorso on line. Ciaravola s.r.l. opera quale intermediario del credito per Findomestic Banca S.p.A., non in esclusiva.

Non disponibile

doneprezzi BASSI

hai trovato un prezzo più basso? contattaci

Acconsento al trattamento dei dati ai sensi del regolamento europeo n. 679/2016

Descrizione

CapacitÃ di input Ampio e hands-on di controllo in una console compatta in grado di gestire una vasta gamma di applicazioni.

25 fader motorizzati (24 canali + 1 master)
48 canali di ingresso di miscelazione (40 mono + 2 stereo + 2 ritorno)
20 Aux (8 mono + 6 stereo) + bus Stereo + Sub
8 gruppi DCA con Roll-out
/ Combo TRS ingressi MIC / LINE 24 XLR analogico + ingressi di linea RCA pin stereo 2 analogici
16 uscite XLR analogiche
34 x 34 canali di registrazione / riproduzione digitale via USB 2.0 + 2 x 2 tramite un dispositivo di archiviazione USB
1 slot di espansione per scheda di interfaccia NY64-D audio

Specifiche

Outline

Fader Configuration		24 + 1 (Master)
Mixing Capacity	Input Channels	48 (40 mono + 2 stereo + 2 return)
	Aux Buses	20 (8 mono + 6 stereo)
	Stereo Buses	1
	Sub Buses	1
Input channel functions		8 DCA Groups
I/O	Inputs	24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
	Outputs	16 (XLR)
	Expansion slots	1
On-board processors	DSP	8 Effects + 10 GEQ
USB		34x34 USB Audio Interface, 2-track recording via USB Storage Device

General specifications

Sampling frequency rate	Internal	48 kHz
Signal delay		Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader		100 mm motorized, Resolution = 10-bit, +10 dB to Â138 dB, Â? dB all faders
Total harmonic distortion		Less than 0.05% 20 HzÂ20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a Â18 dB/octave filter@80 kHz)
Frequency response		+0.5, Â1.5 dB 20 HzÂ20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range		110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level	Equivalent input noise	Â128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Hum & noise level	Residual output noise	Â85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk		Â100 dB (Measured with a Â30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements		100Â240 V 50/60 Hz
Power consumption		110 W
Dimensions	W	716 mm (28.2in)
	H	225 mm (8.9in)
	D	599 mm (23.6in)
Net weight		17.0 kg (37.5lb)
Accessories		Quick Guide, Power Cord, CUBASE AI download information
Options		Expansion Card, Foot Switch (FC5)
Others		Operating temperature range: 0Â40 Â°C, Storage temperature range: -20Â60 Â°C

Analog input characteristics

Input Terminals	GAIN	Load Impedance	For Use With Nominal	Input Level			Connector	balanced / Unbalanced
Input Terminals	GAIN	Load Impedance	For Use With Nominal	Sensitivity*1	Nominal	Max. before clip	Connector	balanced / Unbalanced
INPUT1-24	+66dB	7.5K?	50-600? Mics or 600? Lines	-82dBu (61.6V)	-62dBu (0.616mV)	-42dBu (6.16mV)	Combo Jack (XLR-3-31 type 2 or TRS phone 3)	Balanced
INPUT1-24	-6dB	7.5K?	50-600? Mics or 600? Lines	-10dBu (245mV)	+10dBu (2.45V)	+30dBu (24.5V)	Combo Jack (XLR-3-31 type 2 or TRS phone 3)	Balanced
ST IN 1,2	Â	10k?	600? Lines	-30dBV (31.6V)	-10dBV (316mV)	+10dBV (3.16V)	RCA Pin Jack	Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output Terminals	Source Impedance	For Use With Nominal	GAIN SW	Output Level		Connector	balanced / Unbalanced
Output Terminals	Source Impedance	For Use With Nominal	GAIN SW	Nominal	Max. before clip	Connector	balanced / Unbalanced
OMNI OUT 1-16	75?	600? Lines	Â+24dBuÂ position (default)	+4dBu (1.23 V)	+24dBu (12.3 V)	XLR-3-32 type *1	Balanced
PHONES *3	100?	40? Phones	Â	3mW	75mW	Stereo Phone Jack (TRS) *2	Unbalanced

*1.1: GND,2: HOT, 3: COLDÂ
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GNDÂ
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.Â
*All output DA converters are 24bit, 128times oversampling.
