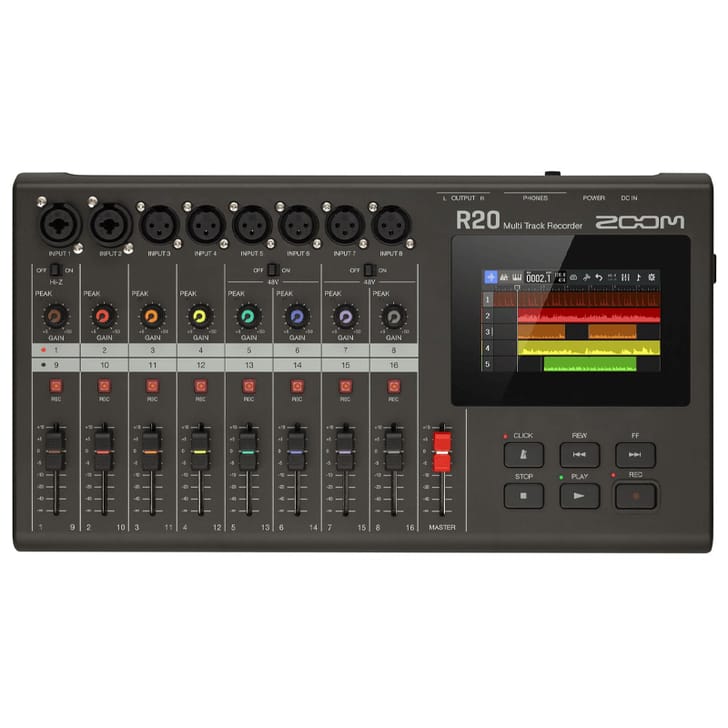

Zoom R20

Registratore Multitraccia

‎Con un'interfaccia touchscreen familiare, l'R20 rende follemente semplice tracciare, modificare e mixare le tue canzoni, permettendoti di concentrarti sulla musica.‎

Specifiche Tecniche

• Inputs: Mic/line (Mono) 8
• Outputs: Master Out 1
• Phones: 1
• Input Mic/line (Mono) Connectors: Xlr/trs Combo Jacks × 2 Xlr × 6 (Xlr: 2 Hot/trs: Tip Hot）
• Input Gain: +6 ~ +50 Db
• Input Impedance: Xlr 3.9 Kω Trs: 5.3 Kω/1 Mω (When Hi-z Is On, For Input 1 Only)
• Maximum Input Level: +4 Dbu (@0 Dbfs)
• Phantom Power: +48 V (Inputs 5–8, Switchable In Pairs)
• Equivalent Input Noise: –121 Dbu Or Less (Ihf-a) With +50db/150ω Input
• Frequency Response; –1.0 Db: 20 Hz – 20 Khz
• Master Out: Connectors 2 Trs Phone Jacks (Balanced)
• Maximum Output Level: +14 Dbu
• Output Impedance: 200 Ω
• Phones: Connector 1 Standard Stereo Phone Jack
• Maximum Output Level: 20 Mw + 20 Mw (Into 32ω Load)
• Output Impedance: 33 Ω
• Track Settings: Pan, Eq High 10 Khz, ±12 Db, Shelving, Middle, 2.5 Khz, ±12 Db, Peaking, Low 100 Hz, ±12 Db, Shelving, Send Effect, Stereo Link, Comp/limiter/gate
• Maximum Simultaneous Recording Tracks: 8
• Maximum Simultaneous Playback Tracks: 16
• Recording Format: 44.1khz, 16/24-bit, Mono/stereo Wav
• Recording Media: 4–32gb Cards Compatible With The Sdhc Specification, 64–1tb Cards Compatible With The Sdxc Specification
• Maximum Number Of Simultaneous Effects: 3 Effects (One Insert Effect On One Channel Or One Send Effect Available To All Tracks)
• Patch Memories: 50
• Tuner: Chromatic/guitar/bass/open A/open D/open E/open G/dadgad
• Metronome: Time Signatures 3/4, 4/4, 6/8. Tempo Range 40.0–250.0 Bpm
• Rhythm Loops Sound Source Format PCM, Number Of Loops 150
• Synth: Polyphony 8, Sound Source Format Fm, Number Of Sound Types 18 + Pcm Drum Kit
• Display: 4.3" (480×272) Full-color Touchscreen Lcd
• Usb Connector: Usb Type-c
• Audio Interface Operation: Stereo Mix Usb 2.0 Full Speed 44.1khz, 16/24-bit 2-in/2-out, Multitrack Usb 2.0 High Speed 44.1 Khz, 16/24-bit 8-in/4-out, Mass Storage Operation Host/device Usb 2.0 High Speed (5v/500ma Power Supplied When Host), Guitar Lab Connection Usb 1.1 Full Speed, Usb Midi Keyboard Connection Usb 1.1 Full Speed (5v/500ma Power Supplied), Daw Connection (Control Surface) Function Usb 1.1 Full Speed
• Remote: Dedicated Wireless Adapter (Zoom Bta-1)
• Power: Ac Adapter (Zoom Zad-1220): 12 V/2.0 A
• Power Consumption: 11 W Maximum
• External Dimensions: 378 Mm (W) × 206 Mm (D) × 58 Mm (H)
• Weight (Unit Only): 1.33 Kg
• Note: 0 Dbu = 0.775 V
